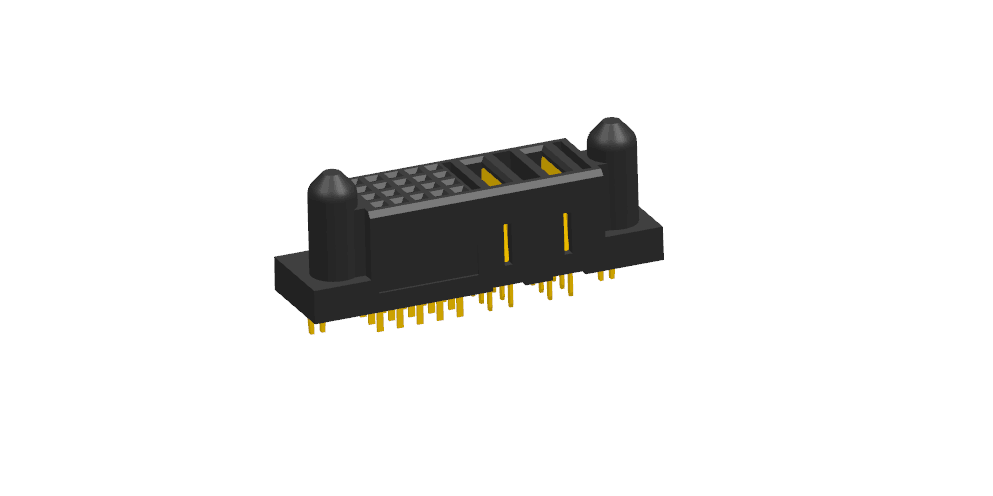

20P signal+2P power 7.62mm female terminal block 180-degree plug-in power signal connector
  • 20P signal+2P power 7.62mm female terminal block 180-degree plug-in power signal connector
  • 20P signal+2P power 7.62mm female terminal block 180-degree plug-in power signal connector
20P signal+2P power 7.62mm female terminal block 180-degree plug-in power signal connector

Product spacing: 7.62mm for electric power; Signal 2.54mm
Product material: PA46 30% fiber black UL94V-0
EU RoHS Directive: in line with (2011/65/EU) requirements
EU REACH Regulation: without REACH SVHC (1907/2006/EC)
EU ELV Directive: in compliance with the requirements of 2000/53/EC

Hotline:+86-755-2991 2370

Product introduction
Type
Type Power signal combination connector
Spacing Electric power 7.62mm; Signal 2.54mm
Installation method 180 degrees
Number of poles 20P signal 2P power
Electrical
Maximum current per contact Signal 3A; Power supply 30A
Rated voltage Signal 60V; Power supply 250V
Contact resistance 10mΩ Max
Insulation resistance 500M Ω Min between signals; 1000M Ω Min between power supply and signal, power supply and power supply
Withstand voltage 1000V AC/minute
Operating temperature range -40ºC~ 125ºC
Material Science
Shell color black
Metal material Phosphorous copper
Plating Surface gold/tin plating
Plastic material PA46 30% fiber
Flame retardant grade UL94V-0
