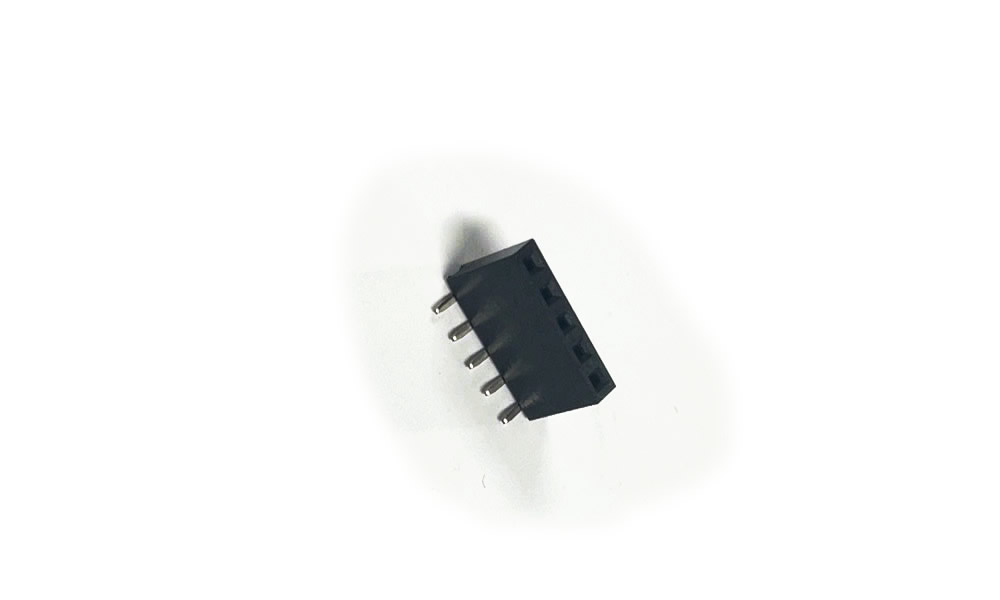

Row bus 2.54mm Single row 90 degree (plastic height 8.5) Y-shaped
  • Row bus 2.54mm Single row 90 degree (plastic height 8.5) Y-shaped
  • Row bus 2.54mm Single row 90 degree (plastic height 8.5) Y-shaped
Row bus 2.54mm Single row 90 degree (plastic height 8.5) Y-shaped

产品间距:2.54mm
产品材质:PBT/PA6T/PA9T 黑色 UL94V-0
欧盟 RoHS指令:符合(2011/65/EU)要求
欧盟REACH法规:不含有REACH SVHC(1907/2006/EC)
欧盟ELV指令:符合2000/53/EC要求

Hotline:+86-755-2991 2370

Product introduction
类型
类型 排母连接器
间距 2.54mm
安装方式 90度
行数 1
极数 1~40P
电气
每触点最大电流 3A
额定电压 250V
接触电阻 20mΩ Max
绝缘电阻 1000MΩ Min
耐电压 500V AC/minute
工作温度范围 -40ºC~+105ºC
材料
壳体颜色 黑色
金属材质 黄铜
镀层 表面镀金/锡
塑胶材质 PBT/PA6T/PA9T
阻燃等级 UL94V-0
