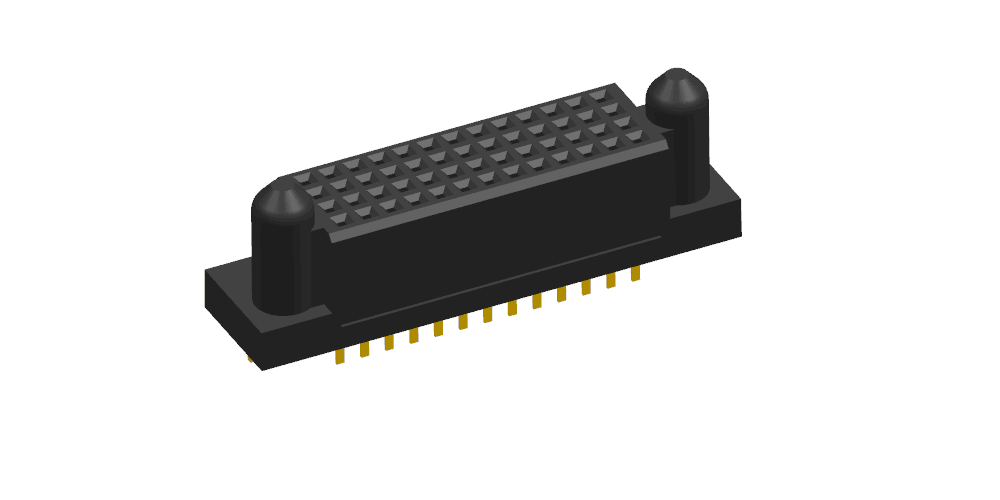

52P signal 2.54mm female terminal 180 ° plug-in signal connector

Product spacing: 2.54mm
Product material: PA46 30% fiber black UL94V-0
EU RoHS Directive: in line with (2011/65/EU) requirements
EU REACH Regulation: without REACH SVHC (1907/2006/EC)
EU ELV Directive: in compliance with the requirements of 2000/53/EC

Hotline：+86-755-2991 2370

Download
Feedback

Product introduction

Type
Type	Power signal combination connector
Spacing	2.54mm
Installation method	180 degrees
Number of poles	52P
Electrical
Maximum current per contact	3A
Contact resistance	10mΩ Max
Insulation resistance	500MΩ Min
Withstand voltage	500V AC/minute
Operating temperature range	-40ºC~ 125ºC
Material Science
Shell color	black
Metal material	Phosphorous copper
Plating	Surface gold/tin plating
Plastic material	PA46 30% fiber
Flame retardant grade	UL94V-0
