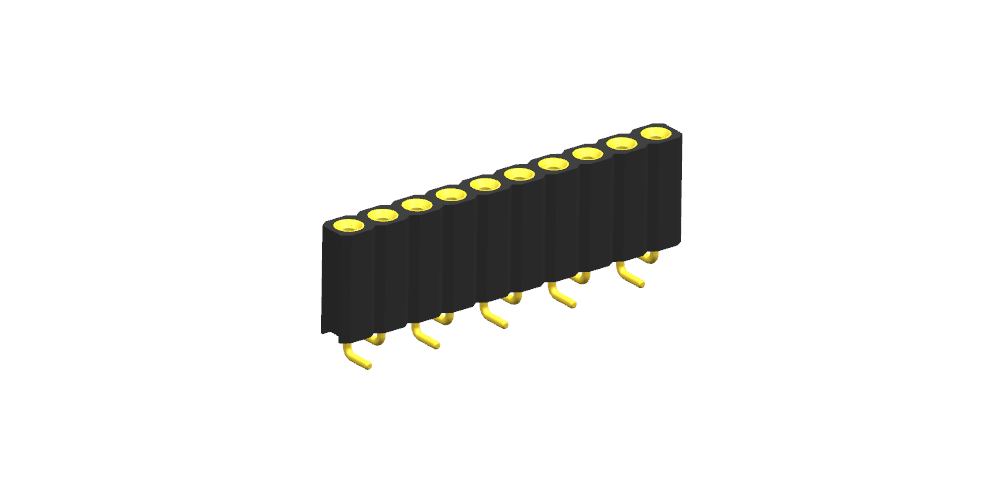

Round hole row bus 2.54mm single row vertical sticker (plastic height 7.0 plastic width 2.54)

Product spacing: 2.54mm
Product material: PPS 30% fiber black UL94V-0
EU RoHS Directive: in line with (2011/65/EU) requirements
EU REACH Regulation: without REACH SVHC (1907/2006/EC)
EU ELV Directive: in compliance with the requirements of 2000/53/EC

Hotline：+86-755-2991 2370

Download
Feedback

Product introduction

Type
Type	Round hole row female connector
Spacing	2.54mm
Installation method	Vertical sticker
Number of rows	one
Number of poles	1~40P
Electrical
Maximum current per contact	3A
Voltage - maximum	250V
contact resistance	20mΩ Max
insulation resistance	1000MΩ Min
Withstand voltage	500V AC/minute
Operating temperature range	-40ºC~ 105ºC
Material Science
Shell color	black
Metal material	brass
Plating	Surface gold/tin plating
Plastic material	PPS 30% fiber
Flame retardant grade	UL94V-0
