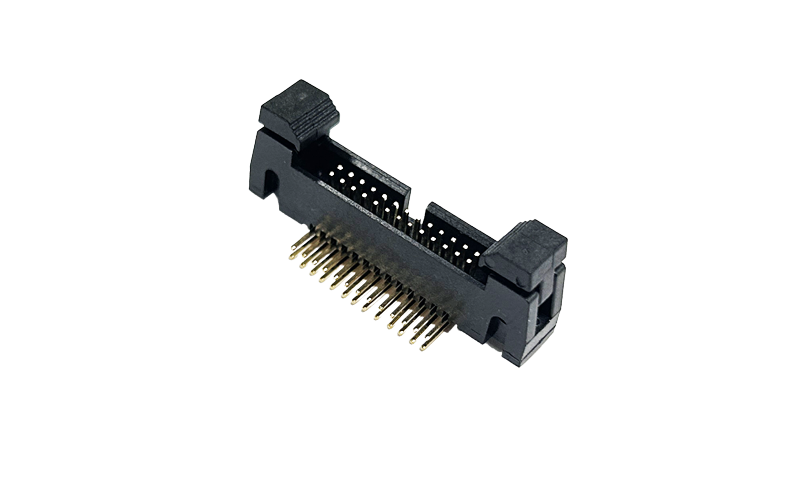

Cow horn 1.27mm double row 90 degrees
  • Cow horn 1.27mm double row 90 degrees
  • Cow horn 1.27mm double row 90 degrees
Cow horn 1.27mm double row 90 degrees

Product spacing: 1.27mm
Product material: PBT/PA6T/PA9T black UL94V-0
EU RoHS Directive: in line with (2011/65/EU) requirements
EU REACH Regulation: without REACH SVHC (1907/2006/EC)
EU ELV Directive: in compliance with the requirements of 2000/53/EC

Hotline：+86-755-2991 2370

Download
Feedback

Product introduction
Type
Type Header Connector
Spacing 1.27mm
Installation method 90 degrees
Number of rows two
Number of poles 2x（1~40P）
Electrical
Maximum current per contact 1A
Rated voltage 250V
Contact resistance 30mΩ Max
Insulation resistance 1000MΩ Min
Withstand voltage 500V AC/minute
Operating temperature range -40ºC~ 105ºC
Material Science
Shell color black
Metal material brass
Plating Surface gold/tin plating
Plastic material PBT/PA6T/PA9T
Flame retardant grade UL94V-0
