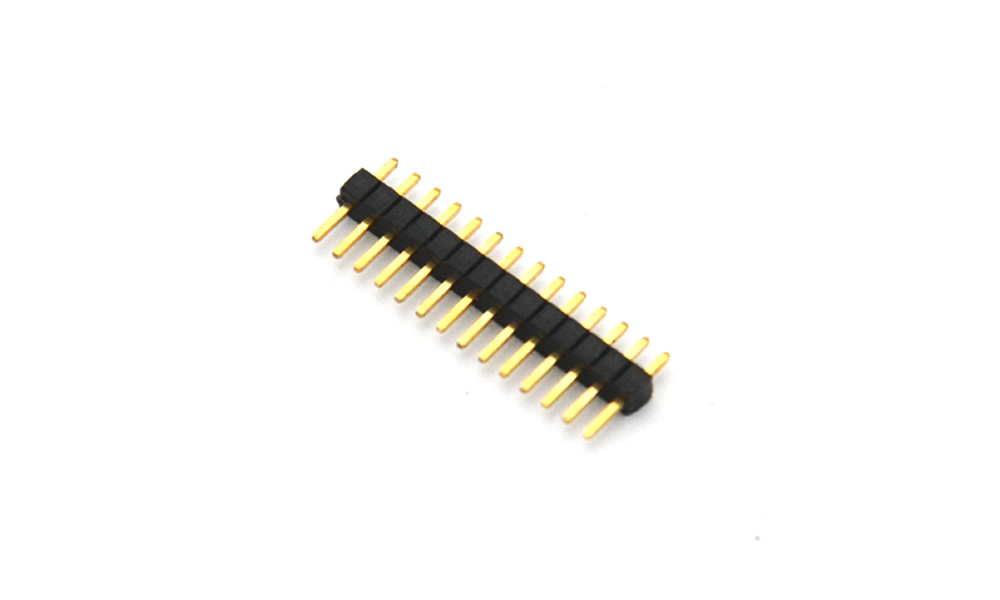

1.27mm row needle single row single plastic DIP

Product spacing: 1.27mm
Product material: PBT/PA6T/PA9T black UL94V-0
EU RoHS Directive: in line with (2011/65/EU) requirements
EU REACH Regulation: without REACH SVHC (1907/2006/EC)
EU ELV Directive: in compliance with the requirements of 2000/53/EC

Hotline：+86-755-2991 2370

Download
Feedback

Product introduction

Type
Type	Pin connector
Spacing	one point two seven
Installation method	90 °/180 °/vertical/horizontal
Number of rows	one
Number of poles	1~40P
Electrical
Maximum current per contact	1A
Voltage - maximum	250V
contact resistance	20mΩ Max
insulation resistance	1000MΩ Min
Withstand voltage	500V AC/minute
Operating temperature range	-40ºC~ 105ºC
Material Science
Shell color	black
Metal material	brass
Plating	Surface gold/tin plating
Plastic material	PBT/PA6T/PA9T
Flame retardant grade	UL94V-0
